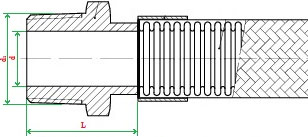

Металлорукав с арматурой «наружная резьба (ниппель)» НМ040, характеристики
| DN, мм | PN, Рабочее давление при Т +20°C | Размеры | ||||||
|---|---|---|---|---|---|---|---|---|
| SO0 | SO1 | SO2 | d | d1 | L | S | ||
| [Бар] | [Бар] | [Бар] | [мм] | [мм] | [мм] | |||
| 6 | 1/4” | 24 | 125 | 167 | 6 | 1/4» | 24,0 | 14 |
| 8 | 5/16” | 17 | 125 | 190 | 8 | 3/8” | 21,0 | 14 |
| 10 | 3/8” | 9 | 100 | 165 | 10 | 3/8” | 22,0 | 18 |
| 12 | 1/2” | 9 | 85 | 145 | 12 | 1/2» | 29,0 | 22 |
| 16 | 5/8” | 7 | 75 | 128 | 16 | 3/4» | 32,0 | 27 |
| 20 | 3/4” | 6 | 55 | 108 | 20 | 1” | 40,5 | 36 |
| 25 | 1” | 3 | 64 | 102 | 25 | 1 1/4» | 40,5 | 36 |
| 32 | 11/4” | 2,5 | 45 | 80 | 32 | 1 1/2» | 41,0 | 46 |
| 40 | 11/2” | 2,5 | 50 | 75 | 40 | 2” | 45,0 | 50 |
| 50 | 2” | 1,6 | 35 | 50 | 50 | 2 1/2» | 49,0 | 65 |
| 65 | 2 1/2” | 0,5 | 25 | 40 | 65 | 3” | 55,0 | 80 |
| 80 | 3” | 2,5 | 25 | 40 | 80 | 3 3/4» | 59,0 | 100 |
| 100 | 4” | 2,5 | 25 | 43 | 100 | 4 1/2» | 68,0 | 120 |
